That tick from the top of the engine, loudest on a cold start and often easing as it warms up, is one of the most common things owners ask us about on a Mk1 MX-5. It is rarely the disaster it sounds like. Most of the time it is the hydraulic lifters, and they can usually be sorted without anything drastic.
What the lifters actually are
A Mk1 MX-5 runs hydraulic lifters between the camshaft and the valves. The cam pushes on the lifter, and the lifter is held firm by engine oil fed in through a small port. That oil takes up any slack in the valve train, so the cam can open the valve with no gap to rattle against. When it is working, you hear nothing.
This is worth knowing up front: it is a Mk1 trait. The later cars moved to solid lifters, which are set by hand and do not tick in this way. So a hydraulic-lifter tick is something you only chase on the Mk1.

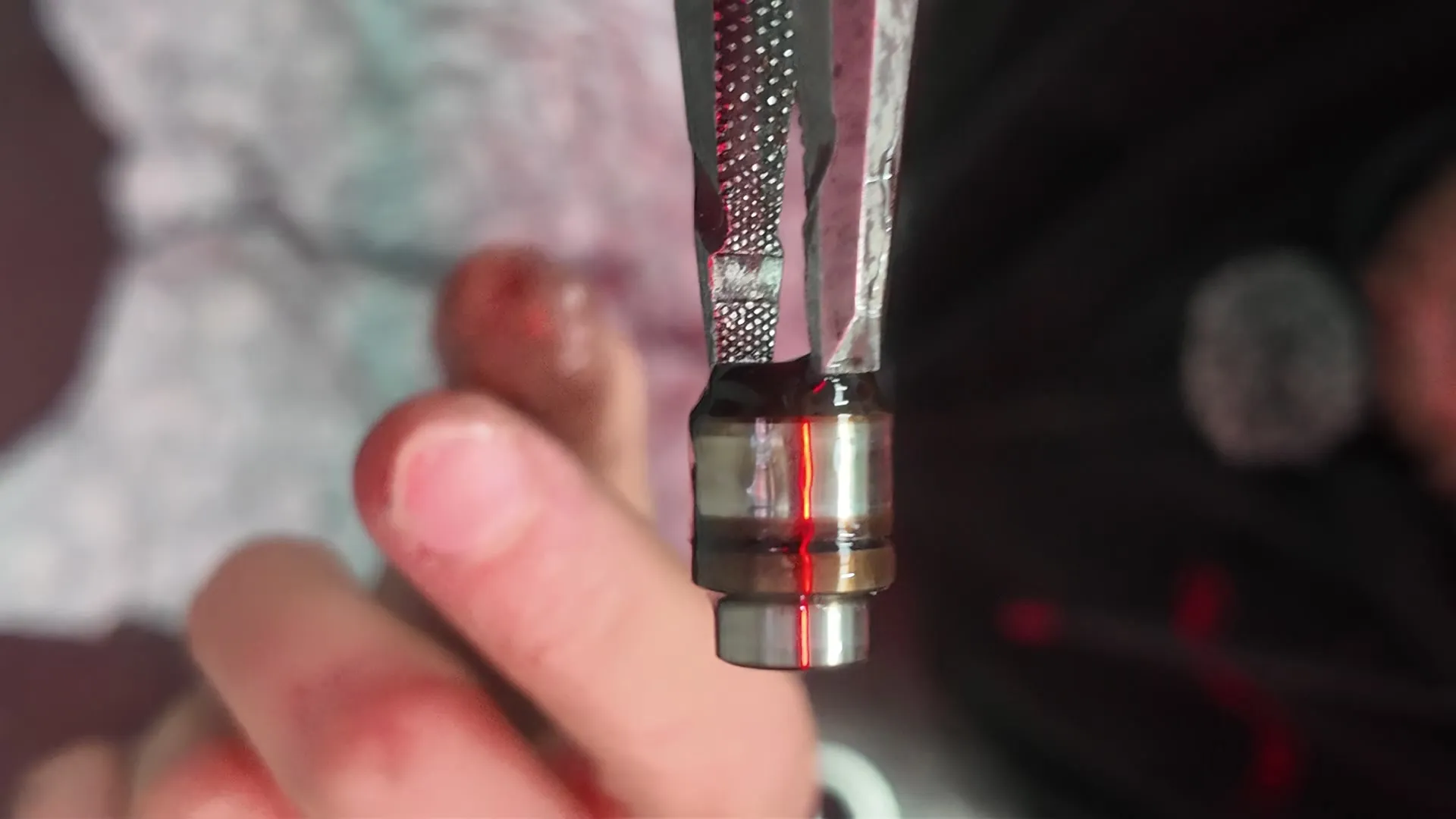

Inside each lifter there is a small plunger, a spring and a one-way ball valve. When the cam is not pushing, the spring eases the plunger out to take up any slack, and the ball valve lets oil fill the chamber behind it. The moment the cam pushes, that ball valve shuts and traps the oil, so the lifter goes solid and opens the valve with no gap to rattle against. There are sixteen of them, one per valve.
Why they tick
The tick is the sound of a lifter no longer holding firm. The passages and the ball valve inside are tiny, and oil does not flow through them as freely as it does the rest of the engine. Over time varnish and burnt-oil residue build up in there and gum up the check valve, so the lifter can no longer trap its oil. It leaks down and compresses under the cam instead of staying solid, and you hear that gap as a tap. A badly stuck one can also hold a valve slightly open, which makes the engine run worse rather than just sound worse.
The cheap first step
Before stripping anything, it is worth ruling out the simple fix. Fresh oil and a service, sometimes a couple of them, can flush a mildly sticky lifter and quieten the tick on its own. If the noise clears that way, you are done, and it has cost you an oil change.
When they need cleaning
If the tick is still there after that, the lifters need cleaning properly. This is the job we film and the part most people skip.

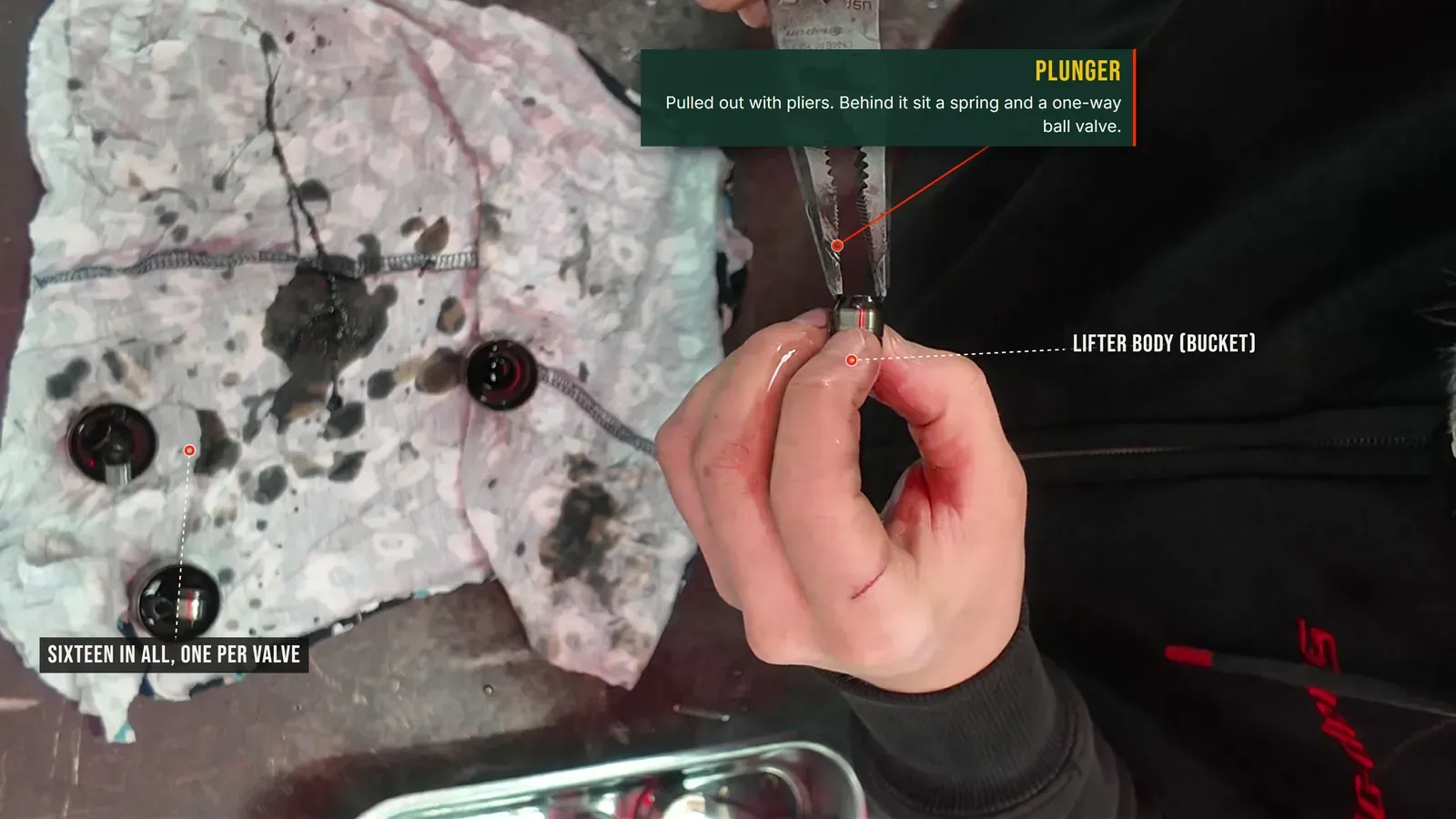

- Strip all sixteen down to their parts. Keep each lifter's plunger, spring and valve together with its own bucket. They do not have to match the engine, but they do have to go back together as the set they came apart as.
- Drain the old oil out. It is usually filthy even on a recently serviced engine, which tells you the oil was never reaching inside properly.

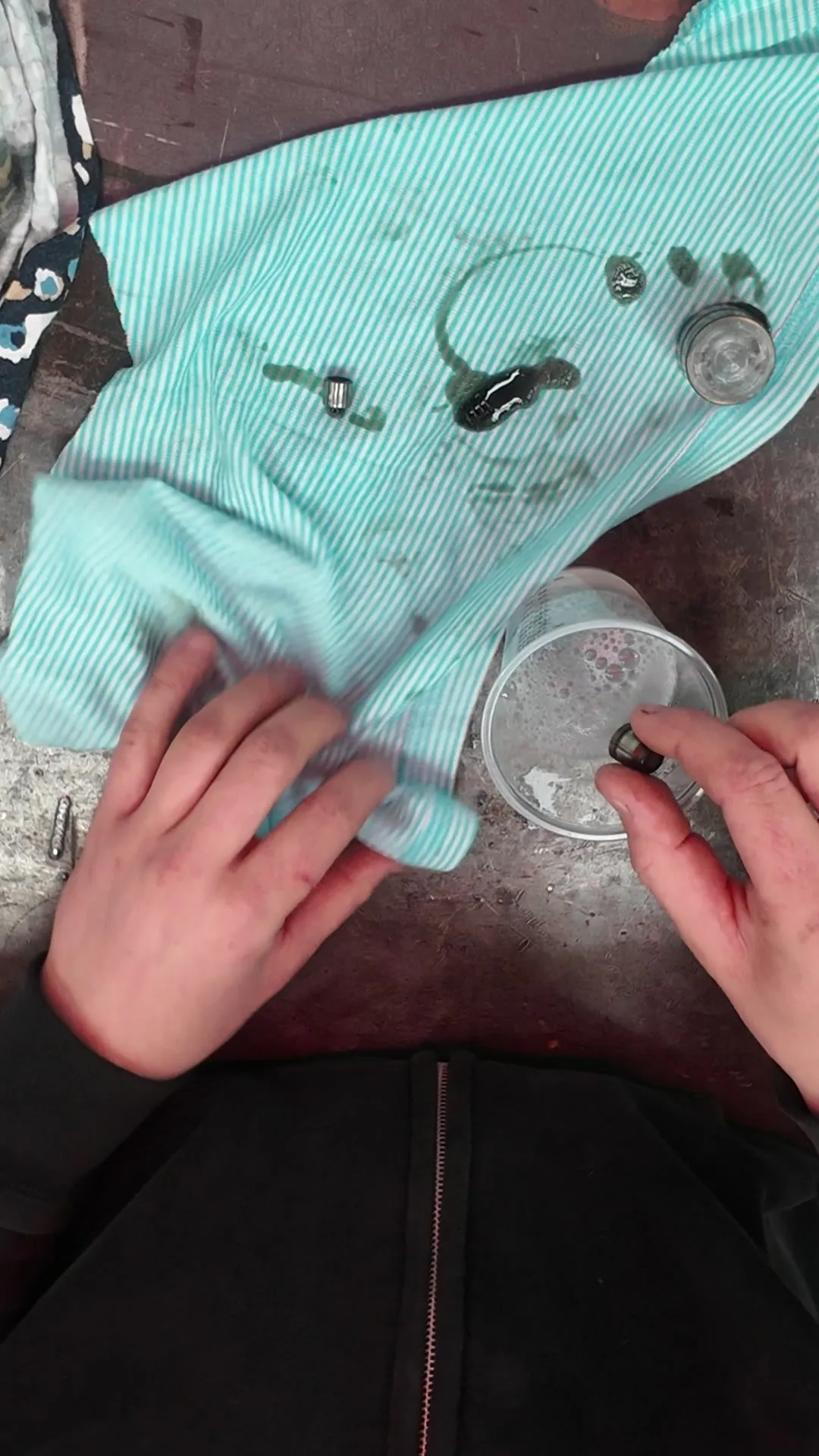

- Clean every part. We degrease first to lift the old oil, then go through again with acetone to strip the last of the coked residue, and blow each one dry.

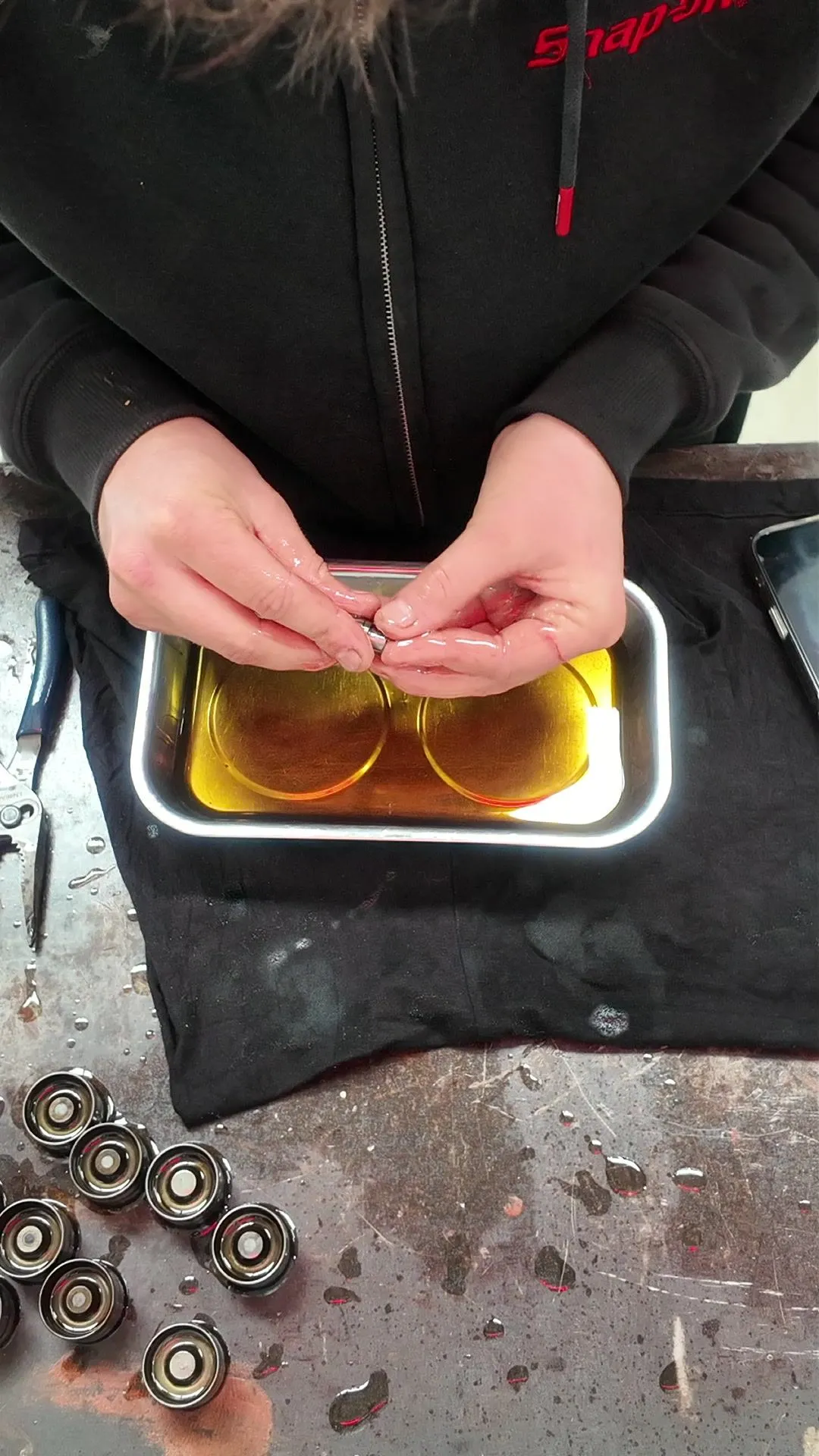

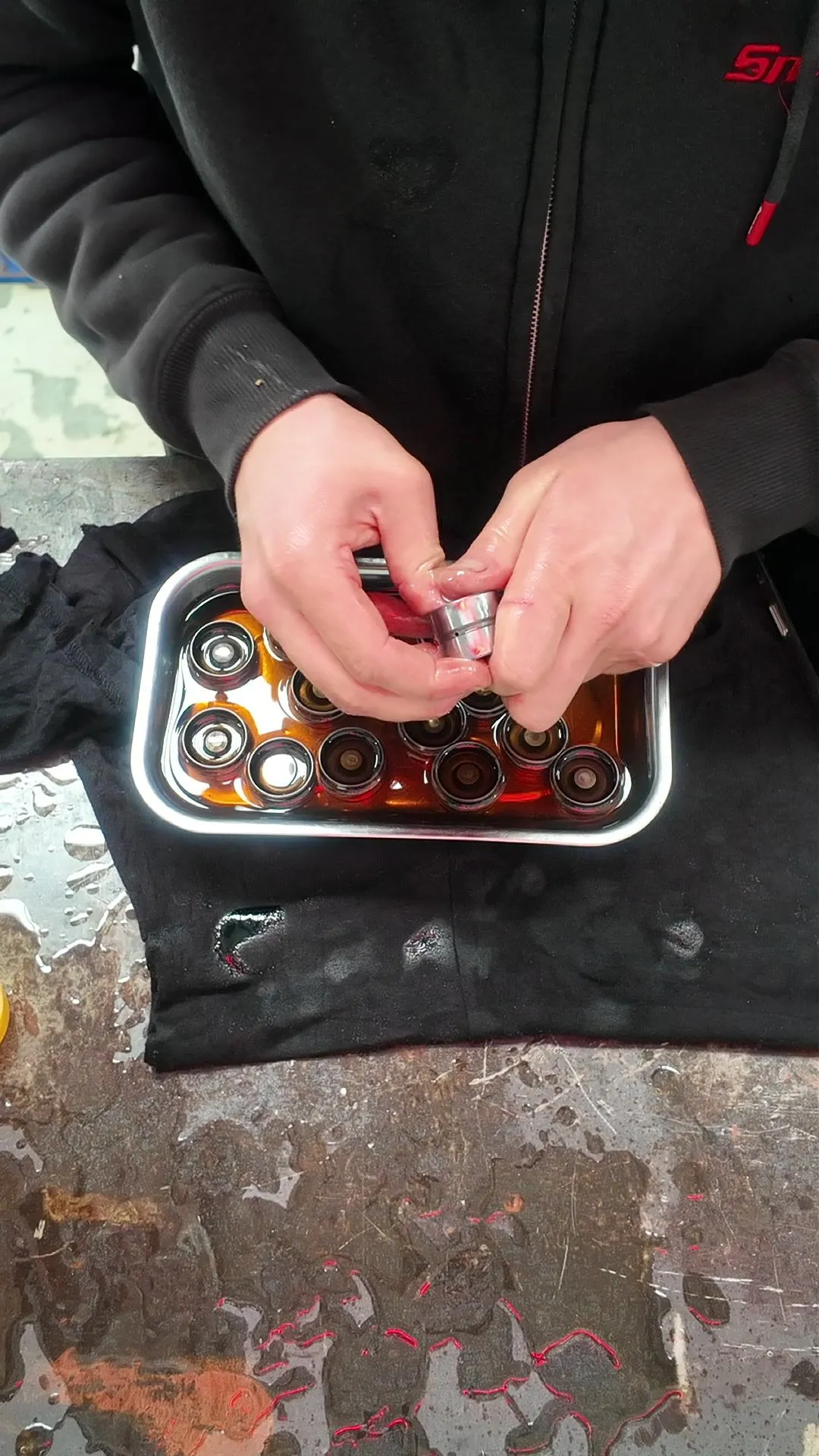

- Reassemble each one full of fresh oil: valve in, spring on, plunger in, then press it back into the bucket. A good one feels springy and moves freely.
- Bleed the air out and check every one. Any that still feel sticky or bind up come apart again for a second look. The whole point is that none of them stick.
If a lifter is worn past saving, it gets replaced rather than refitted. But most clean up and go back to work, and the tick goes with them.
The honest version
A lifter tick is worth dealing with, but it is not a reason to panic about the engine. The fix is either a service or a careful afternoon with sixteen small parts and a lot of patience. We would always try the cheap route first and tell you straight if the car needs the full clean.
